| الاسم التجاري: | XWELL |
| رقم الموديل: | إكس دبليو-32 |
| الحد الأدنى لكمية الطلب: | 1 قطعة |
| السعر: | USD 7900/pcs |
| تفاصيل التغليف: | صندوق خشبي |
| شروط الدفع: | تي / تي، ويسترن يونيون، خطاب الاعتماد |

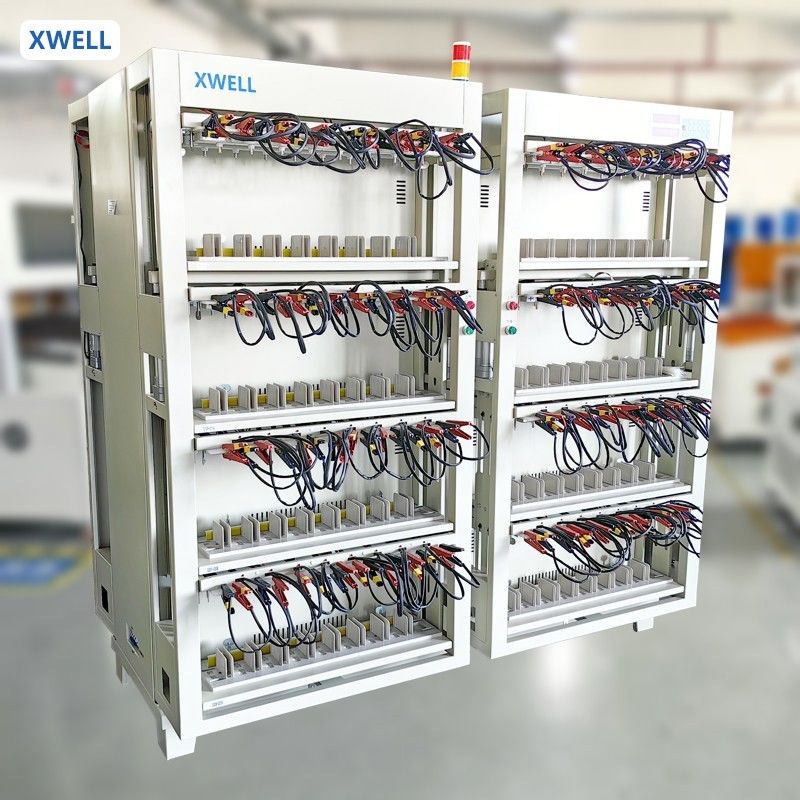

The Prismatic Cell Formation & Grading Cabinet is designed for safe, efficient, and precise formation and capacity grading of prismatic lithium-ion battery cells. It ensures optimal battery performance and consistency for industrial production lines.
| Working power | Three-phase five-wire system AC380V±10%, 50HZ | ||
| Work environment | Temperature 0-40 degrees, relative humidity ≤80% | ||
| Heat dissipation | to enter the air naturally and exhaust the air upward | ||
| Overall energy saving | over 70% | ||
| Channel Parameter | |||
| Voltage measuring range | 0-5V, 1MV resolution | ||
| Battery voltage range | Charge 0-4.5V: Discharge 4.5-2V | ||
| Constant voltage range | 2.5V-4.5V | ||
| voltage accuracy | ±(1‰ reading +1‰ full) | ||
| Current accuracy | ±(1‰ reading +1‰ full) | ||
| Software Function | |||
| Control mode | Computer connection equipment work, FCL control | ||
| Communication mode | RS485 baud rate 57,600 | ||
| Process set | A maximum of 32 work steps and 256 cycles are se | ||
| Charging mode | Constant current, constant pressure | ||
| Charging cutoff condition | Voltage, current, time, capacity | ||
| Discharge | constant current | ||
| Discharge cut-off condition | Voltage, time, capacity | ||
| Defensive function | Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity, etc | ||
| Time range | Set it anywhere from 0 to 30,000 minutes | ||
| Time accuracy | ≤±1‰ | ||
| Sampling inspection period | ≤3S | ||
| Minimum frequency of data recording | ≤5S | ||
| Battery sorting | By capacity, time, discharge platform, etc | ||
| Data processing | Data, graphs, and loop diagrams | ||
XWELL can provide different fixtures for different types of cells
