| Brand Name: | XWELL |
| Model Number: | CCS |
| MOQ: | 100 قطعة |
| السعر: | negotiable |
| Packaging Details: | كرتون |
| Payment Terms: | T/T ، Western Union ، L/C. |

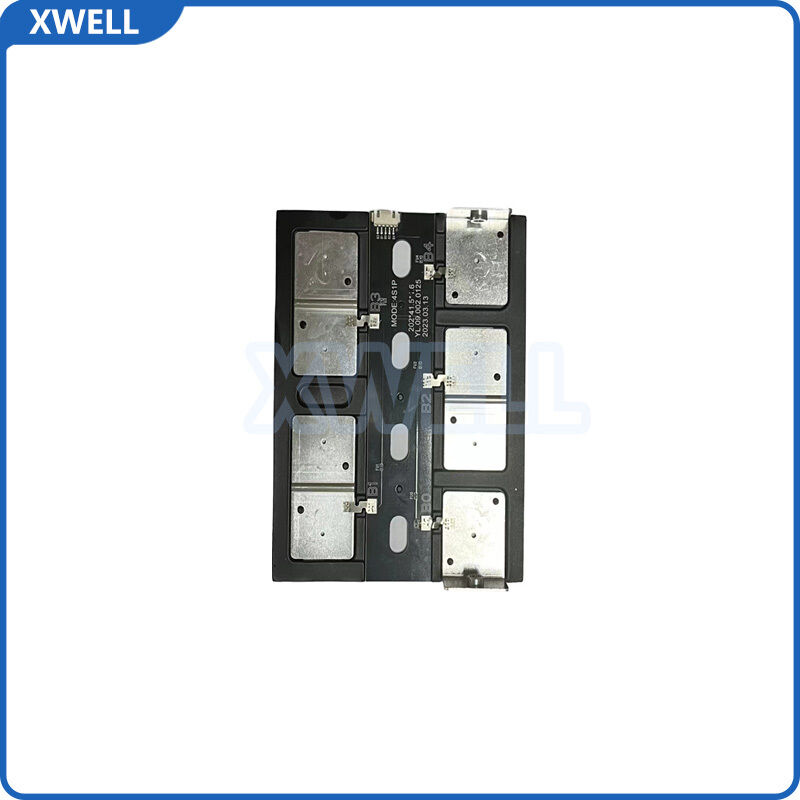

As the core connection and current collection component for prismatic lithium-ion battery packs, our customized CCS (Cell Contact System) integrates signal acquisition modules, plastic structural parts, and copper-aluminum busbars into an integrated, high-performance unit. Exclusively engineered for prismatic battery pack applications, it enables secure, reliable series and parallel connections between battery cells, ensuring efficient, low-loss current transmission while significantly enhancing the overall safety, stability, and operational efficiency of the battery pack. With its precision design, robust performance, and broad adaptability to diverse prismatic cell specifications, this CCS contact system has earned widespread trust and recognition from global customers across the new energy, energy storage, and industrial sectors.
| Item | Specification |
|---|---|
| Applicable Cell Type | Prismatic lithium-ion battery (LiFePO₄/NCM, etc.) |
| Conductor Material | Tinned copper / Nickel-plated copper / Aluminum (optional) |
| Insulation Material | PA66/PPO/PEEK (high-temp resistant ≥120℃) |
| Working Voltage | ≤1500V DC |
| Current Capacity | Customizable up to 800A |
| IP Rating | IP54 (optional IP67 for outdoor applications) |
Widely used in prismatic battery packs for New Energy Vehicles (EVs, hybrid vehicles), Energy Storage Systems (ESS: household, industrial, grid-scale), Electric Forklifts, Portable Power Stations, and Telecommunication Base Stations. (英文:EVs, ESS, electric forklifts, portable power stations, telecom base stations)
