Insulation Highland barley paper 18650 21700 lithium battery hollow insulating paper gasket high temperature motor green shell paper
تفاصيل المنتج:
| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | XWELL |
| إصدار الشهادات: | CE |
| رقم الموديل: | أوراق الشعير العازلة |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 1pcs |
|---|---|
| الأسعار: | USD $0.1~$1000 |
| تفاصيل التغليف: | كرتون |
| وقت التسليم: | 5-7 أيام |
| شروط الدفع: | تي / تي، ويسترن يونيون، خطاب الاعتماد، D / A، D / P |
| القدرة على العرض: | 100000 جهاز كمبيوتر في الشهر |
|
معلومات تفصيلية |
|||
| سماكة: | 0.1 | 0.2 | 0.3 | 0.4 | 0.5 | مخصص | رقم الموديل: | الرجوع إلى قائمة النماذج أدناه |
|---|---|---|---|
| اسم المنتج: | شريط ورق بارلي هايلاند | لون: | ازرق سماوي |
| سمك (مم): | 0.1 | 0.2 | 0.3 | 0.4 | 0.5 | مخصص | العرض (مم): | من 1mm إلى 1000mm | مخصص |
| الطول (م): | 50 | 100 | 200 | 300 | مخصص | طلب: | 18650 21700 26650 بطارية |
| إبراز: | Highland Barley Paper Tape for lithium battery,18650 battery barley paper tape,21700 lithium battery adhesive tape,18650 battery barley paper tape,21700 lithium battery adhesive tape |
||
منتوج وصف
Insulation Highland barley paper 18650 21700 lithium battery hollow insulating paper gasket high temperature motor green shell paper
Product Overview

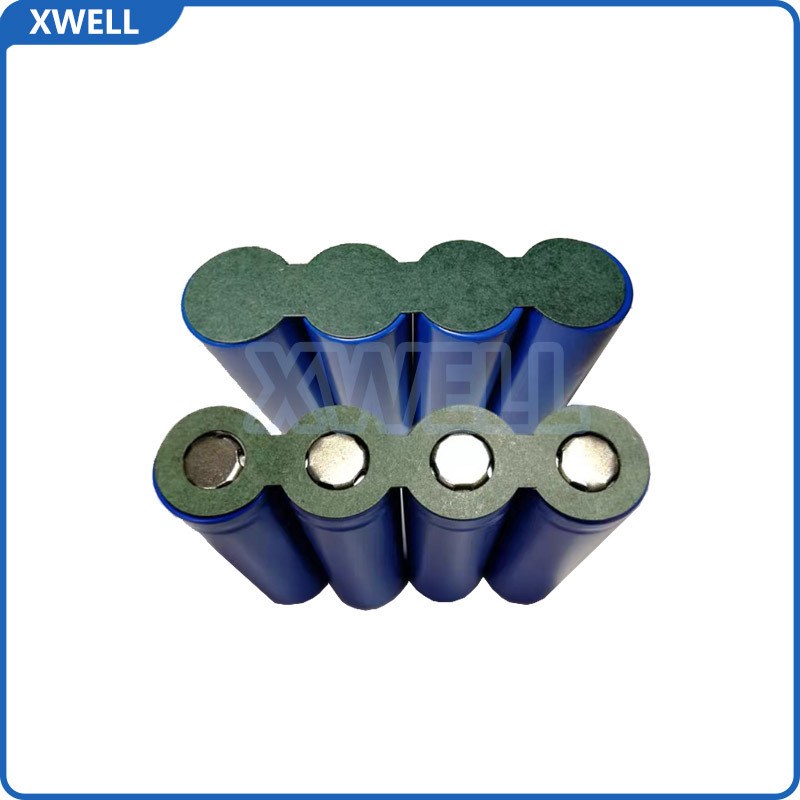

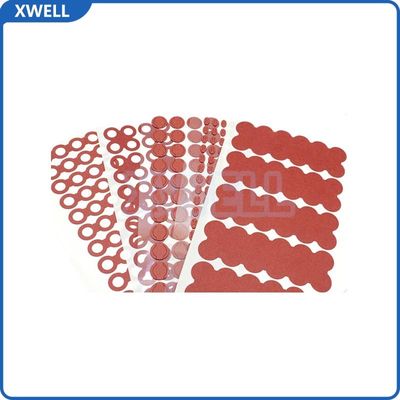

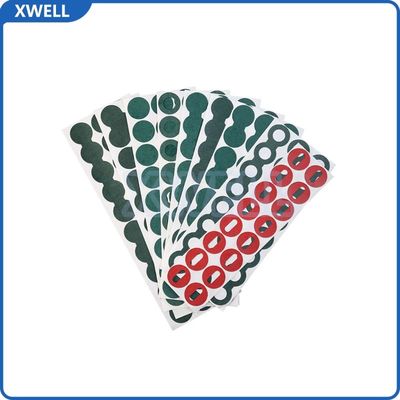

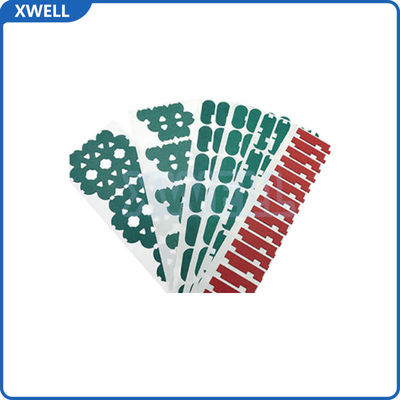

Our Insulation Highland Barley Paper is made laminating a polyester film to one layer of insulation paper. The product can be supplied cut in rolls, sheets or die-cut pieces according to customer specs. ideal for 18650/21700 lithium batteries as hollow insulating gaskets. Also fits high-temperature motors. Features green shell, offers reliable insulation, perfect for battery protection.
Key Features
- Universal Compatibility: Designed specifically for 18650/21700 lithium batteries as hollow insulating gaskets, with additional applications in high-temperature motors.
- Precision Engineering: Manufactured to standard specifications for reliable insulation, eliminating the need for additional cutting while effectively preventing current leakage.
- Thermal Stability: Maintains consistent performance under high-temperature conditions, ensuring safe operation of electrical equipment.
Technical Specifications
| Properties | Units | Values |
|---|---|---|
| Nominal thickness | mm | 0.15 | 0.18 | 0.20 | 0.23 | 0.25 | 0.3 | 0.35 |
| Thickness tolerance | mm | ±0.02 | ±0.03 | ±0.03 | ±0.03 | ±0.03 | ±0.03 | ±0.04 |
| Grammage and tolerance | g/m² | 140±20 | 190±28 | 220±33 | 260±39 | 300±45 | 350±52 | 425±63 |
| Film Nominal Thickness | mm | 0.05 | 0.075 | 0.1 | 0.125 | 0.15 | 0.19 | 0.25 |
Primary Applications
- Battery Safety: Prevents insulation wear and short circuits that could lead to battery fires
- Component Protection: Serves as a durable spacer between metal components
- Extended Lifespan: Reduces wear and tear to prolong battery service life
Quality Assurance
- Compliant with UL and IEC electrical insulation standards
- Custom colors and sizes available for OEM requirements
- Competitive bulk pricing for large volume orders
