Epoxy Fiberglass Insulation Sheet 3240, 0.3-80mm Thickness, 170℃ Heat Resistant
تفاصيل المنتج:
| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | XWELL |
| إصدار الشهادات: | CE |
| رقم الموديل: | لوحة الألياف الزجاجية الايبوكسي |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 1pcs |
|---|---|
| الأسعار: | USD $0.1~$1000 |
| تفاصيل التغليف: | كرتون |
| وقت التسليم: | 5-7 أيام |
| شروط الدفع: | تي / تي، ويسترن يونيون، خطاب الاعتماد، D / A، D / P |
| القدرة على العرض: | 10000 جهاز كمبيوتر شخصي شهري |
|
معلومات تفصيلية |
|||
| رقم الموديل: | 3240 | يكتب: | ورقة العزل |
|---|---|---|---|
| مادة: | لوحة الألياف الزجاجية الايبوكسي | كثافة: | 1.9 - 2.0 جم/سم 3 |
| سماكة: | 0.3mm - 80mm | انتقال الزجاج: | 170 |
| السماح: | 4.8 ميجا هرتز | قوة الشد: | 340MPA |
| إبراز: | epoxy fiberglass insulation sheet 3240,heat resistant insulation sheet 170℃,battery insulation sheet 0.3-80mm,heat resistant insulation sheet 170℃,battery insulation sheet 0.3-80mm |
||
منتوج وصف

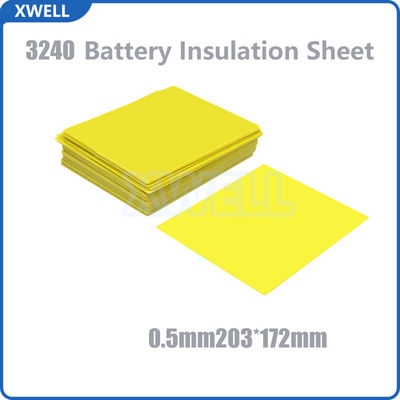

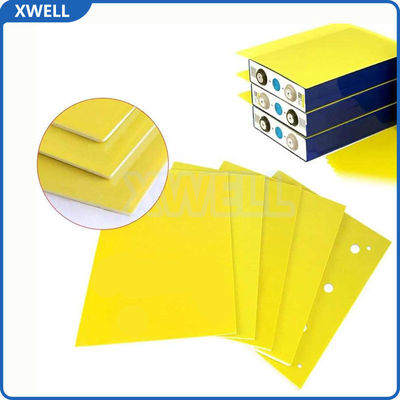

Epoxy Fiberglass Plate Products Battery Insulation Sheet
Premium Insulation Material for High Voltage Applications
Our Heat-Resistant Epoxy Glass Cloth Fiber Board (3240 Board) is a high-performance laminated insulation material designed for demanding industrial and electrical applications. Manufactured using advanced lamination technology, it combines electrical-grade alkali-free glass fiber cloth with premium epoxy phenolic resin for superior performance.
Key Features
- Exceptional Heat Resistance: Meets Class B standards (continuous 130°C), maintaining stable mechanical and electrical properties in high temperatures while resisting thermal aging and deformation.
- Superior Insulation Performance: Excellent dielectric strength (rated 600V) with low dielectric loss, providing reliable insulation for electrical components in high-voltage scenarios.
- Robust Mechanical Strength: High tensile strength and impact resistance with dimensional stability (resists warping/cracking). Smooth surface enables precise machining (cutting, drilling) with clean edges.
Technical Specifications
| Product Name | Epoxy glass fiber cloth board |
|---|---|
| Product Brand | FORY |
| Product Model | 3240 |
| Product Process | CNC engraving machine, cutting machine |
| Product Thickness | 0.3 ~ 100(mm) |
| Product Specifications | 1020*2020 (can be customized to customer requirements) |
Applications

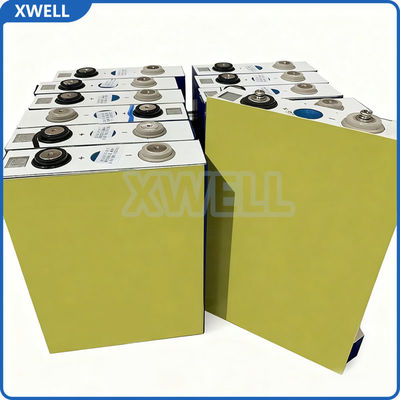

- Battery Packs: High-reliability insulation layers for lithium-ion and NiMH battery packs, isolating cells from electrical interference and mechanical friction while maintaining stable performance under temperature fluctuations.
- Electrical Field: Key component in switchgear, transformer oil barriers, and high/low-voltage electrical cabinets, ensuring long-term insulation stability and preventing electrical leakage in complex power supply environments.
- Tooling & Molds Industry: Ideal for PCB testing fixtures, ICT fixtures, and mechanical molds, offering high dimensional stability and precise machinability for strict precision requirements.
Why Choose Our Products?
- Flexible product specifications with thousands of options to meet diverse requirements
- OEM and ODM designs and labels available
- Low minimum order quantities with customizable samples
- Short production cycles and fast delivery times
- Multiple convenient payment methods available
