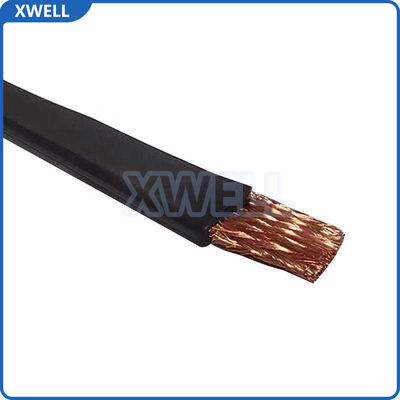

Copper Braided Grounding Wire 99.9% Cu for Power Systems 1.5mm² to 120mm²
تفاصيل المنتج:
| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | XWELL |
| إصدار الشهادات: | CE |
| رقم الموديل: | سلك تأريض مضفر النحاس |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 1pcs |
|---|---|
| الأسعار: | USD 0.1~100 |
| تفاصيل التغليف: | كرتون |
| وقت التسليم: | 5-7 أيام |
| شروط الدفع: | تي / تي، ويسترن يونيون، خطاب الاعتماد، D / A، D / P |
| القدرة على العرض: | 10000 جهاز كمبيوتر شخصي شهري |
|
معلومات تفصيلية |
|||
| مقاس: | عينة متوافرة | لون: | الفضة النحاسية |
|---|---|---|---|
| مادة: | النحاس الاصفر | تطبيق: | الطاقة ، الكهربائية. الموصل وما إلى ذلك |
| عرض: | التخصيص | درجة: | نحاس |
| CU (دقيقة): | 99.9 ٪ | سبيكة أم لا: | غير مفعم بالحيوية |
| إبراز: | copper braided grounding wire,99.9% Cu power systems wire,1.5mm² to 120mm² grounding wire,99.9% Cu power systems wire,1.5mm² to 120mm² grounding wire |
||
منتوج وصف

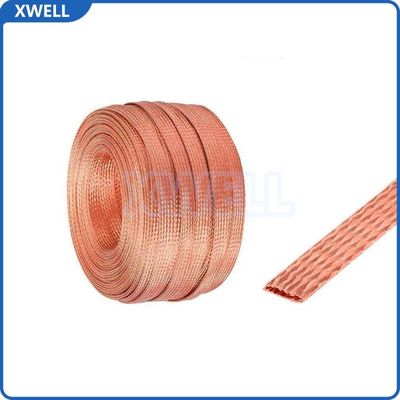

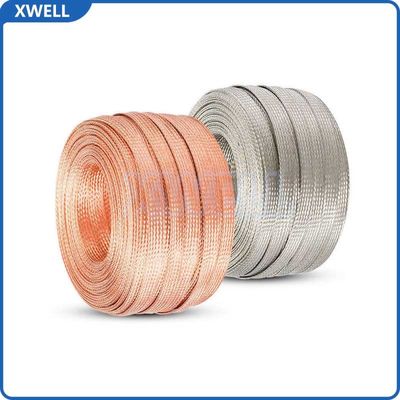

Copper Braided Grounding Wire

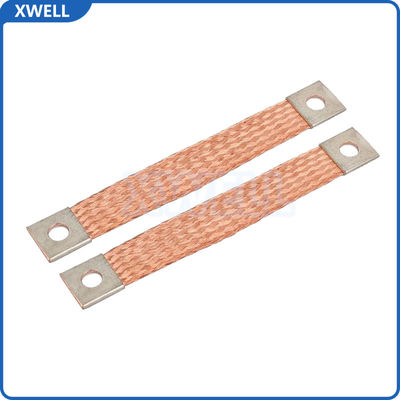

Busbar Flexible Connection, Tinned Soft Joint
Our premium Copper Braided Grounding Wire offers exceptional flexibility and conductivity. Designed with a tight, uniform braid pattern, it features secure connections and durable construction for enhanced electrical safety.
Key Features
- Flexible braided structure with excellent conductivity and twistability
- Secure connection heads with strong tensile strength for durable wiring
- High-density mesh braiding with smooth, burr-free surface
- Precise dimensional compliance for width, thickness and resistivity
Technical Specifications
| Square (mm²) | Structure | Width (mm) | Thickness (mm) | Nominal Cross-Section (mm²) |
|---|---|---|---|---|
| 1.5 | 24 _4_ 1/0.15 | 4 | 1 | 1.69 |
| 2.5 | 24 _6_ 1/0.15 | 6 | 1 | 2.54 |
| 4 | 24 _10_ 1/0.15 | 8 | 1.5 | 4.24 |
| 6 | 36 _10_ 1/0.15 | 12 | 1.5 | 6.36 |
| 8 | 48 _10_ 1/0.15 | 14 | 1.5 | 8.47 |
| 10 | 48 _12_ 1/0.15 | 17 | 1.5 | 10.17 |
| 12 | 48 _15_ 1/0.15 | 19 | 1.5 | 12.72 |
| 16 | 48 _20_ 1/0.15 | 22 | 1.8 | 16.96 |
| 20 | 48 _25_ 1/0.15 | 25 | 2.0 | 21.2 |
| 25 | 48 _30_ 1/0.15 | 29 | 2.2 | 25.45 |
| 25 | 48 _15_ 2/0.15 | 20 | 3.5 | 25.45 |
| 35 | 48 _20_ 2/0.15 | 26 | 3.0 | 33.91 |
| 35 | Single-layer | 35 | 1.5-2 | 35 |
| 50 | 48 _30_ 2/0.15 | 30 | 3.2 | 50.87 |
| 50 | Single-layer | 50 width | 1.5-2 | 50 |
| 75 | 48 _30_ 3/0.15 | 31 | 5 | 76.3 |
| 100 | 48 _30_ 4/0.15 | 31 | 6 | 101.74 |
| 120 | 48 _30_ 5/0.15 | 31 | 7 | 127.17 |
Application Scope
- Power Systems: Grounding for transformers, generators, and distribution cabinets; flexible connections between high-current components
- Automotive Industry: EV battery module connections and traditional vehicle circuits with vibration resistance
- Industrial Equipment: Flexible conductive connections in machinery and precision instruments
- Electronics: Internal wiring for servers and communication base stations to reduce interference
- New Energy: Solar inverters and wind power converters for current diversion in harsh environments
Why Choose Our Copper Braided Grounding Wire?
Guaranteed response to enquiries within 6 hours
English-speaking customer service for clear communication
Premium quality materials and manufacturing standards
Reliable and expedited shipping solutions
