Prismatic Battery Cell 8 Channels Automatic Sorting Machine
تفاصيل المنتج:
| Place of Origin: | China |
| اسم العلامة التجارية: | XWELL |
| إصدار الشهادات: | CE |
| Model Number: | XW-BPS08 |
شروط الدفع والشحن:
| Minimum Order Quantity: | 1pcs |
|---|---|
| الأسعار: | USD 10000 - 15000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
معلومات تفصيلية |
|||
| Standby rate: | ≥ 95% | Place of Origin: | China |
|---|---|---|---|
| Input Voltage: | AC220V/50Hz | Speed: | 600 pcs/h |
| Test Parameter: | AC internal resistance, open DC voltage | Power: | <1000W |
| Internal Resistance Test: | Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm | Voltage Test: | Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV |
منتوج وصف
Prismatic Battery Cell 8 Channels Automatic Sorting Machine
Guangdong Xwell Technology Co., Ltd.
Guangdong Xwell Technology Co., Ltd. is acomprehensive company, have 21 years experience in new energy battery industry. inorder to create more economic and offer theone-step service, we collect all the knowledgeand resource to service our customers with complete solution in battery industry in our field including the battery laboratory equipment,battery production equipment, battery pack equipment, laser welding machine, plastic ultrasonic welding machine, metal ultrasonic spot welding machine, wire ultrasonic welding machine, and most of the accessories, and we hadexported them to more than 60 countries all over theworld in the past 10 years. We have passed CE safety certificated system. With rich technology and capital resource, we pay high attention to the new productin novation. Every year we have at least one new designmachine. Creating value for customers first is the only way to achieve self-worth. We look forward to cooperating with you!
I. Equipment functional characteristics:
*The equipment includes brand computer, software system, precision voltage internal resistance measuring instrument, code scanning mechanism, batch loading device, automatic grading of manipulator, automatic blanking and other devices.
*According to the AC internal resistance, open circuit voltage and other parameters of lithium batteries, the batteries are accurately graded and grouped according to various performance parameters. The maximum number of graded pairs at one time is 8, which improves the consistency of pack battery quality and paired cell performance
II. Applicable battery specifications and incoming material requirements
1. Square 50 * 160 * 118, 36 * 130 * 200, 30 * 130 * 200 batteries;
2. The positive and negative electrodes are clean and free of dirt.
Prismatic Battery Cell Sorting Machine Specification
| Voltage Supply | 220V±10%/50Hz±10% |
| Power | <1000W |
| Display Screen | Computer software user interface |
| Battery Types |
Prismatic cells |
| Receiving Channel | 8 channels |
| Test Parameter | AC internal resistance, DC voltage |
| Internal Resistance Test |
Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm |
| Voltage Test |
Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV |
| Sorting Speed | 600 pcs/h |
| Weight | <300KG |
| Dimension | 2250mm(L)*1200mm(W)*1630mm(H) |
| Tester | HK3561, BT3562 |
| Productivity | 600 pcs/h |

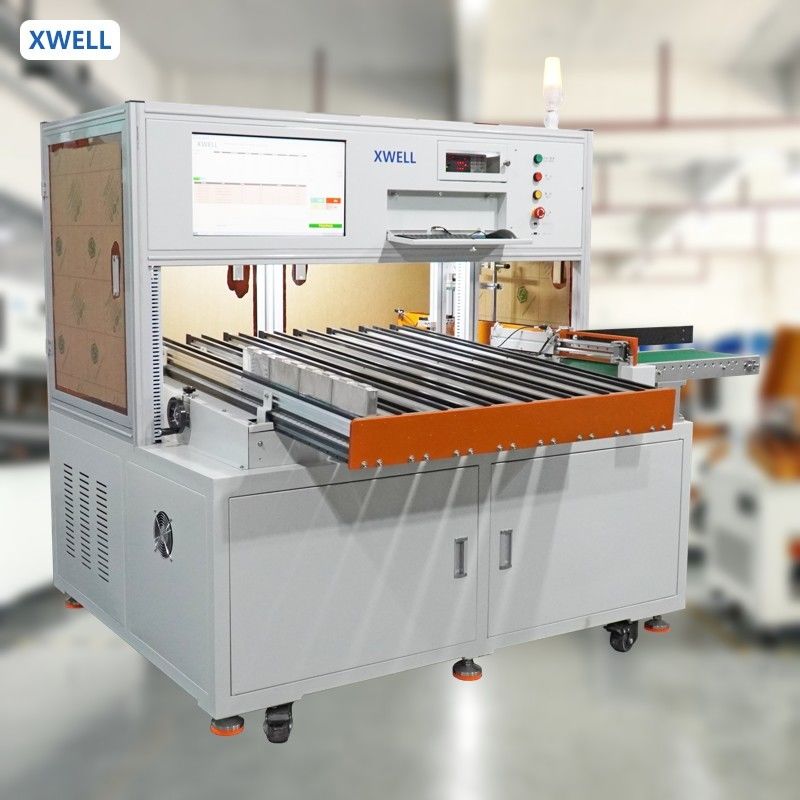

Prismatic Battery Cell Sorting Machine Details
