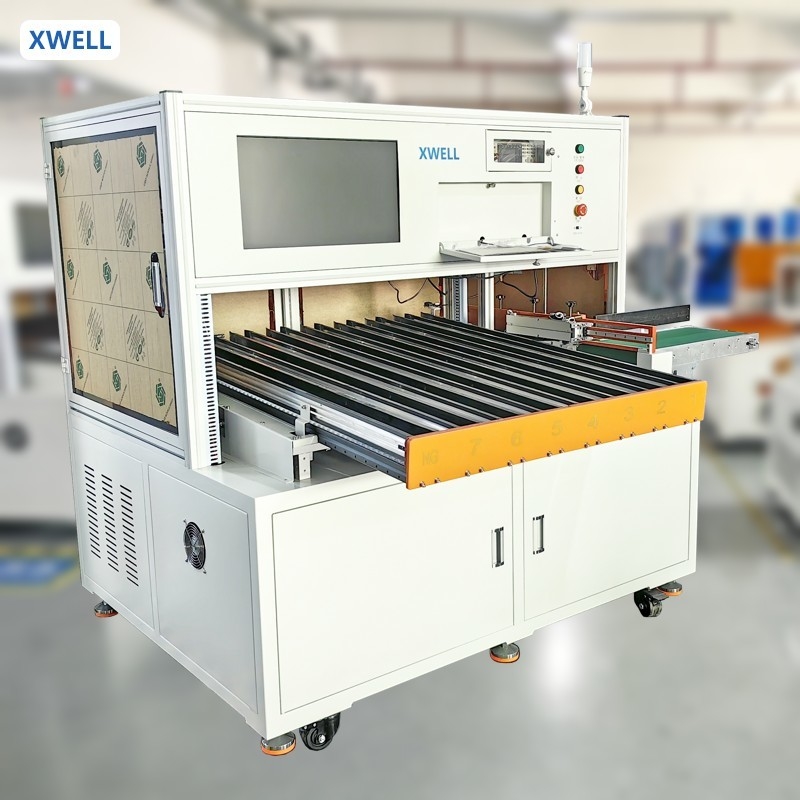

8 Channels Prismatic Battery Sorting Machine
تفاصيل المنتج:
| Place of Origin: | China |
| اسم العلامة التجارية: | XWELL |
| إصدار الشهادات: | CE |
| Model Number: | XW-BPS08 |
شروط الدفع والشحن:
| Minimum Order Quantity: | 1pcs |
|---|---|
| الأسعار: | USD 10000 - 15000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
معلومات تفصيلية |
|||
| Compliance: | CE Certified | Payment: | T/T |
|---|---|---|---|
| Input Voltage: | AC220V/50Hz | Speed: | 600 pcs/h |
| Test Parameter: | AC internal resistance, open DC voltage | Power: | <1000W |
| Internal Resistance Test: | Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm | Voltage Test: | Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV |
منتوج وصف
8 Channels Prismatic Battery Sorting Machine
Guangdong Xwell Technology Co., Ltd.
Guangdong Xwell Technology Co., Ltd. is acomprehensive company, have 21 years experience in new energy battery industry. inorder to create more economic and offer theone-step service, we collect all the knowledgeand resource to service our customers with complete solution in battery industry in our field including the battery laboratory equipment,battery production equipment, battery pack equipment, laser welding machine, plastic ultrasonic welding machine, metal ultrasonic spot welding machine, wire ultrasonic welding machine, and most of the accessories, and we hadexported them to more than 60 countries all over theworld in the past 10 years. We have passed CE safety certificated system. With rich technology and capital resource, we pay high attention to the new productin novation. Every year we have at least one new designmachine. Creating value for customers first is the only way to achieve self-worth. We look forward to cooperating with you!
Description
XW-BPS08 Prismatic battery cell sorting machine is a 8 channels automatic sorting machine with the function of automatic code scanning, automatic testing, automatic sorting of internal resistance and voltage. With high-precision internal resistance and voltage automatic testing system, the equipment according to the internal resistance, voltage value set in the software to accurately send the battery to the specified channel, the system can realize up to 8 levels of sorting. This equipment can test about 600 pieces of battery cells per hour, and the structure design is simple and generous, stable performance, simple operation, cost-effective sorting equipment.
Parameter
1)Power supply: 220V±10%/50Hz±10%
2)Power:2000W
3)Air source:0.5～0.6Mpa
4)Weight:350 KG；
5)Dimension:L1800mm*W1200mm*H1600mm；
6)Use of the environment: Please avoid the use of this equipment in high temperature, high humidity, vibration or shock, metal powder, welding spatter more places, pay attention to the control of the ambient temperature around the equipment; equipment must be grounded and separate from the personnel grounding line;
Prismatic Battery Cell Sorting Machine Specification
| Voltage Supply | 220V±10%/50Hz±10% |
| Power | <1000W |
| Display Screen | Computer software user interface |
| Battery Types |
Prismatic cells |
| Receiving Channel | 8 channels |
| Test Parameter | AC internal resistance, DC voltage |
| Internal Resistance Test |
Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm |
| Voltage Test |
Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV |
| Sorting Speed | 600 pcs/h |
| Weight | <300KG |
| Dimension | 2250mm(L)*1200mm(W)*1630mm(H) |
| Tester | HK3561, BT3562 |
| Productivity | 600 pcs/h |
Prismatic Battery Cell Sorting Machine Details
